High Precision High Efficiency Micro Spur Gear Reducer DC Motor 5V 6V 12v Dc Gear Motor N20 for Smart Lock
Micro Spur Gear Reducer DC Motor Description:
-
Factory customization: customized according to demand, high performance, stable and controllable
-
Motor model :MSGM1224N20
-
Gearbox size:φ12*24mm gearbox
-
Gear type :Spur gear
-
Match motor type: FF-N20, FF-N30, FF-N10 permanent magnet DC motors
-
Voltage ranged:DC1.2V-12V
-
Rated Speed :5rpm-3000rpm
-
Rated torque :0.05kgf.cm-2kgf.cm
-
Motor voltage speed torque eccentric wheel size and material can be customized according to customer requirements.
-
Reduction ratio:1:10 ,1:20,1:30,1:50,1:75 ,1:100,1:150,1:210,1:250,1:298, 1:300,1:500,1:1000 or Customized
-
The above gearbox reduction ratio is our compangy's conventional reduction ratio,and the reduction ratiocan be customized
-
Gearbox materail :Copper ,steel ect
-
Direction of motor :CW &CCW available
-
Shaft diameter :φ3mm or others
-
SHAFT TYPES:
Out shaft standard as follows,also can customerized due to the user drawings
-
Round Type :DIA3mm. 4mm. 5mm D-cut Type: DIA3-D2.5 DIA4-D3 etcScrew Type: M3 M4 M5 Serial
-
Trape Type I-cut Type: DIA3-I2 DIA4-I3 Other Type: Shaft with a hole etc
-
Applications:vacuum cleaner,New energy vehicle charging pile,sweeper radioda,Robot,Locks ,Locker lock,Toys car,Intelligent door locks,mopper,3D printer
-
Meet EU environmental standards: low energy consumption, low noise
-
Accessories:Encoders, gears and other requirements can be configured
-
Quality: With professional equipment, improve the testing process, quality control system
-
Support service :OEM &ODM
-
Please refer to the rated voltage used by our motor,the voltage exceeding the range of use of our voltagemay cause the machine to burn.
-
We can provide sample testing
-
Every product must pass 100% quality inspection before shipment
Key attributes:
Rated Speed(RPM)
5rpm-3000rpm
Continuous Current(A)
10mA-300mA
Gearbox Shaft
Round,D-cut,Flat,Screw M3,M4 ect
Place of Origin
Guangdong, China
Model Number
MS-GM1224N20
Use
vacuum cleaner,New energy vehicle charging pile,sweeper radioda,Robot,Locks
Reduction ratio
1:10-1:1000 Gear ratio or customized
Construction
Permanent Magnet
Motor type
FF-N10,FF-N20,FF-N30
Protect Feature
Exposed Gearbox
Product Name
Micro Spur Gear Reducer DC Motor
Gearbox materials
customized ,Steel plate or Copper plate
Certificate
16949,CE,Rohs,EU,ISO
Life time
100hours-1000hours
Shaft type
Round ,Flat,D-cut,M4,M3,with a hole ect
Gearse Material
Copper ,steel ect

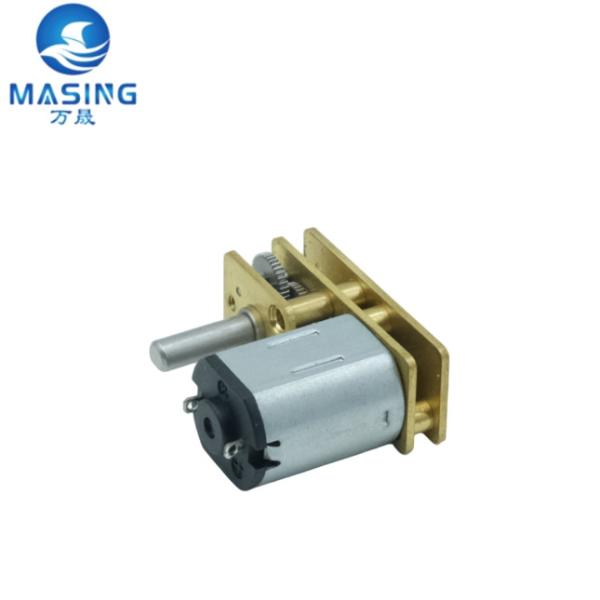

Micro Spur Gear Reducer DC Motor Photo:
Micro Spur Gear Reducer DC Motor Spec:
12UN20 DC Spur Gear Motor Typical Applications:
Robotics and actuator ,Electronic Lock,Toy Car ,Locks,3D Printer,Car, Home Appliance, Cosmetic instrument, SMART HOME, robots,door lock,projector
Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.
| MODEL | VOLTAGE | NO-LOAD | ATMAXIMUM EFACIENCY | STALL TORQUE | GEAR
RADO | LENGTH OF
GEAR
BOX/L) | MATCH
THE
MOTOR | LENGTH OF
MOTOR(L1) |
| SPEED | CURRENT | SPEED | CURRENT | TOROUE | TORQUE | CURRENT |
| V | rhmin | A | min | A | mNm | Kgcm | mNm | Kgcm | A | | mm | | mm |
| MS-12FN20-11 | 5 | 1854 | 0.054 | 1468 | 0.20 | 3.0 | 0.03 | 6.0 | 0.05 | 0.74 | 11 | 9 | N20 | 15 |
| MS-12FN20-37 | 5 | 554 | 0.050 | 436 | 0.22 | 10.0 | 0.10 | 24.2 | 0.25 | 0.74 | 37 | 9 | N20 | 15 |
| MS-12FN2060 | 5 | 410 | 0.050 | 323 | 0.22 | 13.6 | 0.14 | 27.2 | 0.28 | 0.74 | 50 | 9 | N20 | 15 |
| MS-12FN20-97 | 5 | 211 | 0.060 | 166 | 0.22 | 26.3 | 0.27 | 52.8 | 0.54 | 0.74 | 97 | 9 | N20 | 15 |
| MS-12FN20-117 | 5 | 175 | 0.058 | 138 | 0.25 | 31.8 | 0.32 | 63.6 | 0.65 | 0.74 | 117 | 9 | N20 | 15 |
| MS-12FN20-150 | 5 | 137 | 0.058 | 108 | 0.25 | 40.7 | 0.42 | 81.6 | 0.83 | 0.74 | 150 | 9 | N20 | 15 |
Packaging and delivery:
Packaging Details
Strong Carton 1000pcs/box, or as you wish.
Port
Shenzhen/Guangzhou/Shanghai
Selling Units:
Single item
Single package size:
12X10X24mm
Single gross weight:
0.01kg
Supply Ability:
Supply Ability
100000 Piece/Pieces per Month
Lead time:
| Quantity (pieces) | 1 - 100 | 101 - 1000 | > 1000 |
| Lead time (days) | 10 | 15 | To be negotiated |
Samples:
Maximum order quantity: 1piece
Factory Show:
Product Classification:
Applications:
Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,
5G communication,Smart home,vacuum cleaner,New energy vehicle charging pile,sweeper radioda,Robot,Locks ,Locker lock,Toys car,Intelligent door locks,mopper,3D printer
Q1:How can i get the price? A1:We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
Q2: Can I buy samples placing orders?
A2: Yes.Please feel free to contact us.
Q3: What is your lead time? A3: It depends on the order quantity and the season you place the order. Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.
Q4:How do you make our business long-term and good relationship?
A4: a. We keep good quality and competitive price to ensure our customers benefit ; b. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q5:What is your terms of packing?
A5: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q6: How long is the producing and shipping?
A6.The delivery time depends on the quantity you purchase. Normal purchase order delivery time is 25-35 days.
